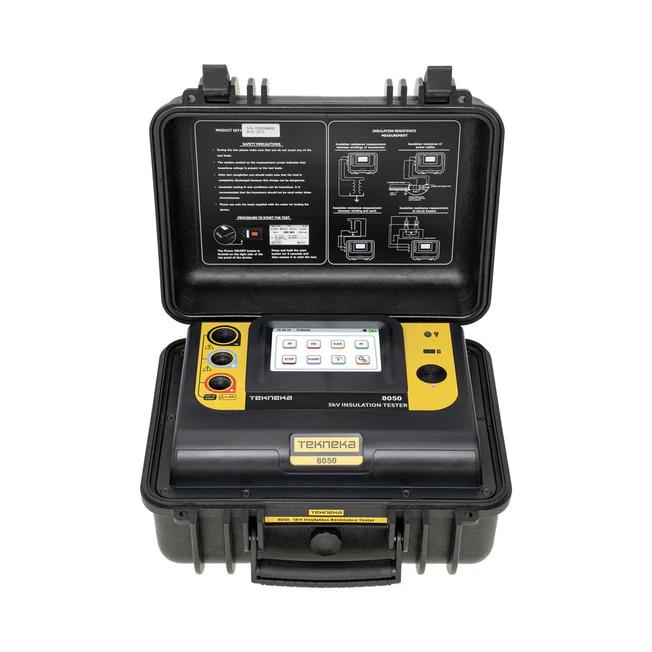

High Voltage Testing: Capable of testing insulation resistance up to 5kV, ensuring comprehensive assessment.
Multiple Testing Modes: Includes IR (Insulation Resistance), PI (Polarization Index), DAR (Dielectric Absorption Ratio), DDT (Dielectric Discharge Test), STEP, RAMP, and Voltage measurement.
User-Friendly Display: 5-inch TFT LCD touch-screen display for easy operation and clear visibility.
Robust Construction: Suitable for use at elevations up to 2000 meters with a 600V CAT IV rating for enhanced safety.
Large Data Storage: Stores up to 2000 readings, allowing for extensive data logging and analysis.
Wireless Connectivity: Bluetooth and USB 2.0 for real-time data transfer and mobile app integration.
Auditory Readout: Provides alert sounds and test result announcements for user convenience.
Extended Usage: In-built rechargeable battery with up to 6 hours of continuous operation.
Versatile Applications: Ideal for high-voltage equipment testing, motor and generator testing, cable and wire insulation testing, electrical substations, manufacturing quality control, renewable energy systems, aircraft and aerospace, railway systems, oil and gas industry, and research and development
Key Technical Specifications:
Test Voltage Range: 250V, 500V, 1000V, 2500V, 5000V
Insulation Resistance Range: 0.01MΩ to 10TΩ
Accuracy: ±(2% + 2 digits)
Testing Modes: IR (Insulation Resistance), PI (Polarization Index), DAR (Dielectric Absorption Ratio), DDT (Dielectric Discharge Test), STEP, RAMP, Voltage Measurement
Display: 5-inch TFT LCD touch-screen
Data Storage: Up to 2000 readings
Connectivity: Bluetooth and USB 2.0
Power Supply: In-built rechargeable battery with up to 6 hours of continuous operation
Safety Rating: 600V CAT IV
Operating Altitude: Up to 2000 meters
Auditory Readout: Alert sounds and test result announcements
Dimensions: 270mm x 250mm x 160mm
Weight: 3.5 kg
Applications:
High-Voltage Equipment Testing
Motor and Generator Testing
Cable and Wire Insulation Testing
Electrical Substations
Manufacturing Quality Control
Renewable Energy Systems
Aircraft and Aerospace
Railway Systems
Oil and Gas Industry
Research and Development
For B2B Inquiries :
Please send your E-Mail to info@dotearth.ae, and one of our sales associate will contact you.
Tel : 02 665 1126
