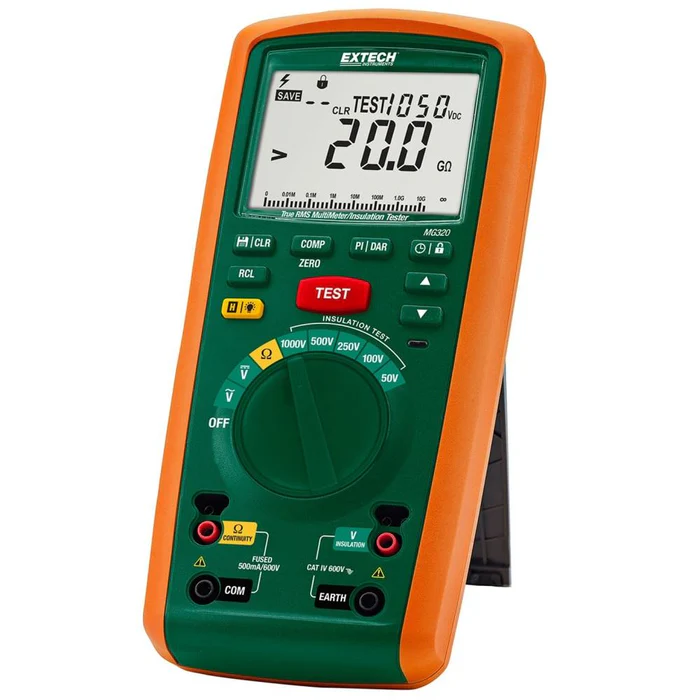

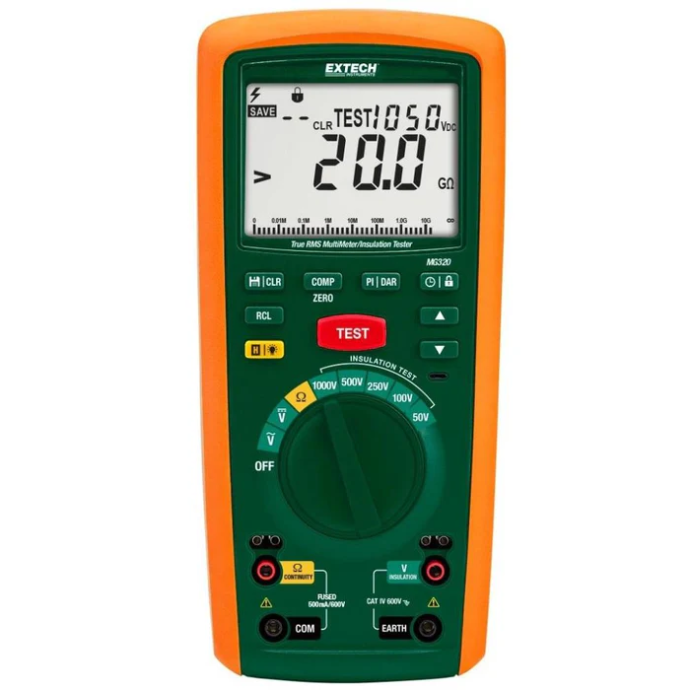

Extech MG320: CAT IV Insulation Tester/True RMS MultiMeter

https://dotearth.erpfunnel.com/web/image/product.template/1944/image_1920?unique=96f217c

1,499.00 AED 1499.0 AED 1,499.00 AED 1,529.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Test & Measurement Best Seller Digital Multimeter Multimeter Extech Instruments
Contact Us
Brand: Extech Instruments
Warranty: 1 Year

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Key Features:

Two-in-One Functionality

  • Combines a CAT IV insulation tester and a True RMS multimeter, offering exceptional versatility for electrical and industrial professionals.

Insulation Testing

  • Provides test voltages of 250V, 500V, and 1000V, suitable for a wide range of applications.
  • Insulation resistance measurement up to 5.5GΩ for accurate performance evaluation.

True RMS Accuracy

  • Ensures reliable and precise readings for both AC voltage and current, even with distorted waveforms.

Safety Certified

  • Rated CAT IV-600V / CAT III-1000V for maximum safety in high-voltage environments.
  • Fully compliant with IEC 61010 safety standards.

Advanced Multimeter Functions

  • Measures AC/DC voltage (up to 1000V) and current (up to 10A).
  • Resistance measurement up to 60MΩ.
  • Includes continuity and diode testing for quick circuit diagnostics.

Data Logging and Storage

  • Features a data hold function to freeze readings for easier analysis.
  • Memory recall for storing insulation test results.

User-Friendly Design

  • Large, backlit LCD screen for easy visibility in low-light conditions.
  • Compact and rugged design with a built-in tilt stand for hands-free operation.

Durability and Protection

  • Overload protection across all ranges ensures durability and reliability.
  • Comes with protective rubber holster to safeguard the device in harsh environments.

Power Efficiency

  • Operates on standard batteries with an automatic power-off feature to extend battery life.


​Key Technical Specifications:

Insulation Testing Capabilities

  • Test voltages: 250V, 500V, and 1000V.
  • Insulation resistance range: 0.001MΩ to 5.5GΩ.
  • Test accuracy: ±3% for precise insulation assessments.

True RMS Multimeter Functions

  • AC/DC Voltage Measurement: Up to 1000V.
  • AC/DC Current Measurement: Up to 10A.
  • Resistance: Up to 60MΩ for accurate electrical diagnostics.

Safety Ratings

  • CAT IV-600V and CAT III-1000V safety compliance for high-voltage environments.
  • Fully compliant with IEC 61010 safety standards.

Display Features

  • Large, easy-to-read backlit LCD screen for enhanced visibility.
  • Analog bar graph display for real-time measurement trends.

Data Handling

  • Data Hold function freezes displayed measurements for convenience.
  • Memory recall for insulation test results, enabling post-analysis.

Durability and Protection

  • Overload protection on all ranges to safeguard the device.
  • Built-in rubber holster for shock resistance in rugged environments.

Power Supply

  • Operates on 6 AA batteries with an auto power-off feature to conserve energy.

Environmental Tolerance

  • Operating temperature: 0°C to 40°C (32°F to 104°F).
  • Storage temperature: -10°C to 60°C (14°F to 140°F).
