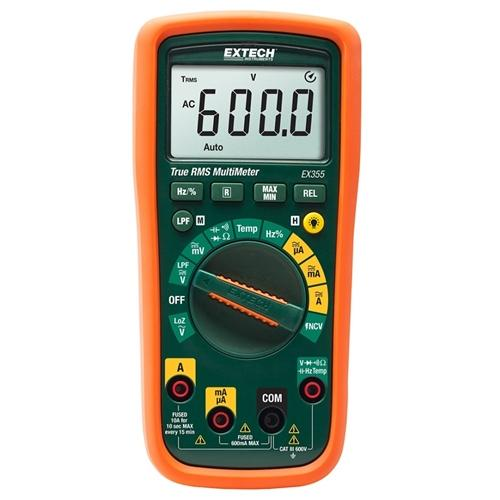

Extech EX355: 11 Function True RMS Multimeter + NCV

This combination does not exist.

Test & Measurement Best Seller Digital Multimeter Multimeter Extech Instruments

Brand: Extech Instruments

Warranty: 1 Year

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Key Features:

True RMS Measurements: Ensures accurate readings of AC voltage and current, even for distorted waveforms, in demanding applications like HVAC and industrial settings.
Non-Contact Voltage Detection (NCV): Quickly and safely detects the presence of AC voltage without physical contact, enhancing user safety.
Low Impedance Mode (LoZ): Eliminates false readings caused by "ghost voltages" in high-impedance circuits, providing accurate measurements in challenging environments.
Low Pass Filter (LPF): Attenuates high-frequency noise for accurate readings in noisy electrical environments.
Large, Backlit LCD Display: Ensures easy readability in various lighting conditions, improving user experience.
Data Hold Function: Freezes readings on the display for easy recording and analysis.
Auto Power Off: Conserves battery life by automatically shutting down the meter after a period of inactivity.
Rugged and Durable Design: Built to withstand drops and impacts, making it suitable for demanding field use.
Comprehensive Measurement Capabilities: Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, and temperature.

Technical Specifications

DC Voltage:
- Resolution: 0.1mV
- Range: 600.0mV to 600.0V
- Accuracy: ±0.5% ±2 digits
AC Voltage (True RMS):
- Resolution: 0.1V
- Range: 6.00V to 600.0V
- Accuracy: ±1.2% ±5 digits
DC Current:
- Resolution: 0.1µA
- Range: 60.00µA to 10.00A
- Accuracy: ±1.0% ±3 digits
AC Current (True RMS):
- Resolution: 0.1mA
- Range: 600.0µA to 10.00A
- Accuracy: ±1.5% ±5 digits
Resistance:
- Resolution: 0.1Ω
- Range: 60.00Ω to 40.00MΩ
- Accuracy: ±1.0% ±3 digits
Capacitance:
- Resolution: 1nF
- Range: 20.00nF to 20.00µF
- Accuracy: ±3.5% ±5 digits
Frequency:
- Resolution: 0.01Hz
- Range: 0.001Hz to 40MHz
- Accuracy: ±0.5% ±5 digits
Duty Cycle:
- Resolution: 0.1%
- Range: 0.1% to 99.9%
- Accuracy: ±0.5% ±5 digits
Temperature:
- Resolution: 0.1°C
- Range: -20.0°C to +70.0°C
- Accuracy: ±2.0°C
Diode Test:
- Voltage: Approx. 2.0V
Continuity Test:
- Audible and visual indication
Non-Contact Voltage Detection:
- Detection range: 90V to 1000V AC
Safety:
- CAT III 600V, CAT IV 300V
- IEC 61010-1
