  2. Extech EX330: 12 Function Mini MultiMeter + Non-Contact Voltage Detector

Extech EX330: 12 Function Mini MultiMeter + Non-Contact Voltage Detector

https://dotearth.erpfunnel.com/web/image/product.template/1914/image_1920?unique=96f217c
(0 review)

229.00 AED 229.0 AED 229.00 AED 249.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Extech Instruments
    Warranty: 1 Year


    Share

    Name: Extech EX330: 12 Function Mini MultiMeter + Non-Contact Voltage Detector

    Key Features:

    • 12 Essential Functions: Measures AC/DC voltage, AC/DC current, resistance, continuity, diode test, capacitance, frequency, duty cycle, and temperature.

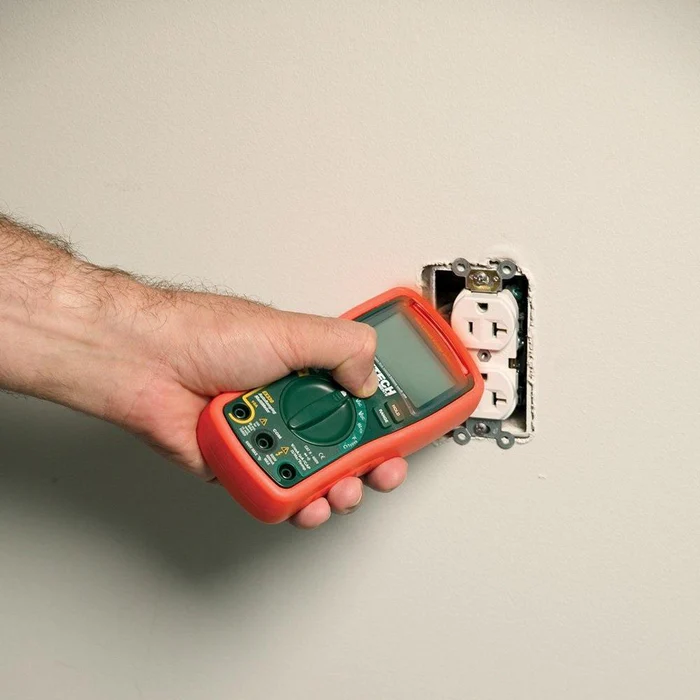

    • Non-Contact Voltage Detection: Quickly and safely detects the presence of AC voltage without physical contact, improving safety.
    • Autoranging: Automatically selects the appropriate measurement range for optimal readings.
    • Large, Backlit LCD Display: Ensures easy readability in various lighting conditions.
    • Data Hold Function: Freezes readings on the display for easy recording.
    • Low Battery Indicator: Alerts the user when the battery needs replacement.
    • Rugged and Durable: Designed to withstand drops and other impacts, making it suitable for field use.
    • Affordable: Offers excellent value for its price and comprehensive feature set.


    ​Key Technical Specifications:

    • DC Voltage:
      • Resolution: 0.1mV
      • Range: 600.0mV to 600.0V
      • Accuracy: ±0.5% ±2 digits
    • AC Voltage:
      • Resolution: 0.1V
      • Range: 6.00V to 600.0V
      • Accuracy: ±1.2% ±5 digits
    • DC Current:
      • Resolution: 0.1µA
      • Range: 60.00µA to 10.00A
      • Accuracy: ±1.0% ±3 digits
    • AC Current:
      • Resolution: 0.1mA
      • Range: 600.0µA to 10.00A
      • Accuracy: ±1.5% ±5 digits
    • Resistance:
      • Resolution: 0.1Ω
      • Range: 60.00Ω to 40.00MΩ
      • Accuracy: ±1.0% ±3 digits
    • Capacitance:
      • Resolution: 1nF
      • Range: 20.00nF to 20.00µF
      • Accuracy: ±3.5% ±5 digits
    • Frequency:
      • Resolution: 0.01Hz
      • Range: 0.001Hz to 40MHz
      • Accuracy: ±0.5% ±5 digits
    • Duty Cycle:
      • Resolution: 0.1%
      • Range: 0.1% to 99.9%
      • Accuracy: ±0.5% ±5 digits
    • Temperature:
      • Resolution: 0.1°C
      • Range: -20.0°C to +70.0°C
      • Accuracy: ±2.0°C
    • Diode Test:
      • Voltage: Approx. 2.0V
    • Continuity Test:
      • Audible and visual indication
    • Non-Contact Voltage Detection:
      • Detection range: 90V to 1000V AC
    • Safety:
      • CAT III 600V, CAT IV 300V
      • IEC 61010-1
