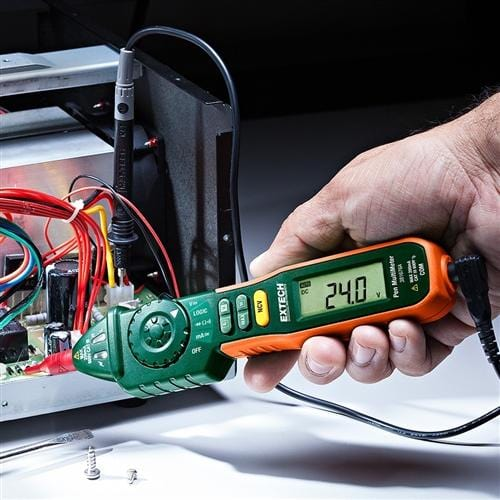

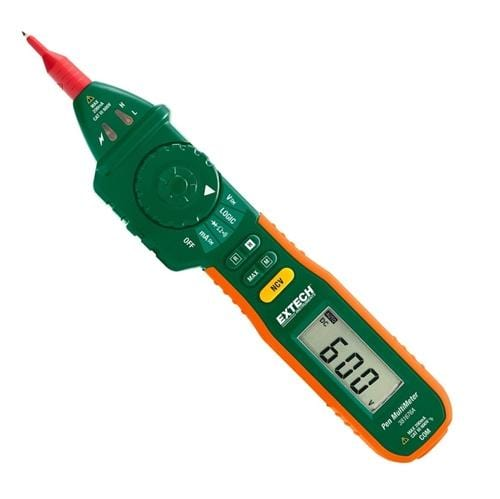

Extech 381676A: 9 Function Pen Multimeter

This combination does not exist.

Test & Measurement Best Seller Digital Multimeter Multimeter Extech Instruments

Brand: Extech Instruments

Warranty: 1 Year

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Key Features:

9 Essential Functions: Measures AC/DC voltage, AC/DC current, resistance, continuity, diode test, and features a logic test function.
Non-Contact Voltage Detection (NCV): Quickly and safely detects the presence of AC voltage without physical contact, improving safety.
Compact and Portable: Pen-style design for easy portability and one-handed operation.
Large, Easy-to-Read Display: Ensures clear visibility of readings.
Auto Power Off: Conserves battery life by automatically shutting down the meter after a period of inactivity.
Rugged and Durable: Designed to withstand drops and other impacts, making it suitable for field use.
Affordable: Offers excellent value for its price and comprehensive feature set.

Key Technical Specifications:

DC Voltage:
- Resolution: 0.1mV
- Range: 200mV, 2V, 20V, 200V, 600V
- Accuracy: ±0.8% ±2 digits
AC Voltage:
- Resolution: 0.1V
- Range: 2V, 20V, 200V, 600V
- Accuracy: ±1.2% ±5 digits
DC Current:
- Resolution: 0.1mA
- Range: 20mA, 200mA
- Accuracy: ±1.5% ±3 digits
AC Current:
- Resolution: 0.1mA
- Range: 20mA, 200mA
- Accuracy: ±2% ±5 digits
Resistance:
- Resolution: 0.1Ω
- Range: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
- Accuracy: ±1.0% ±3 digits
Diode Test:
- Voltage: Approx. 2.0V
Continuity Test:
- Audible and visual indication
Logic Test:
- 0-1.5V (Green LED), 1.5-3.5V (LED Off), 3.5-5V (Red LED)
Non-Contact Voltage Detection:
- Detects AC voltage
Safety:
- CAT II 600V
- IEC 61010-1
