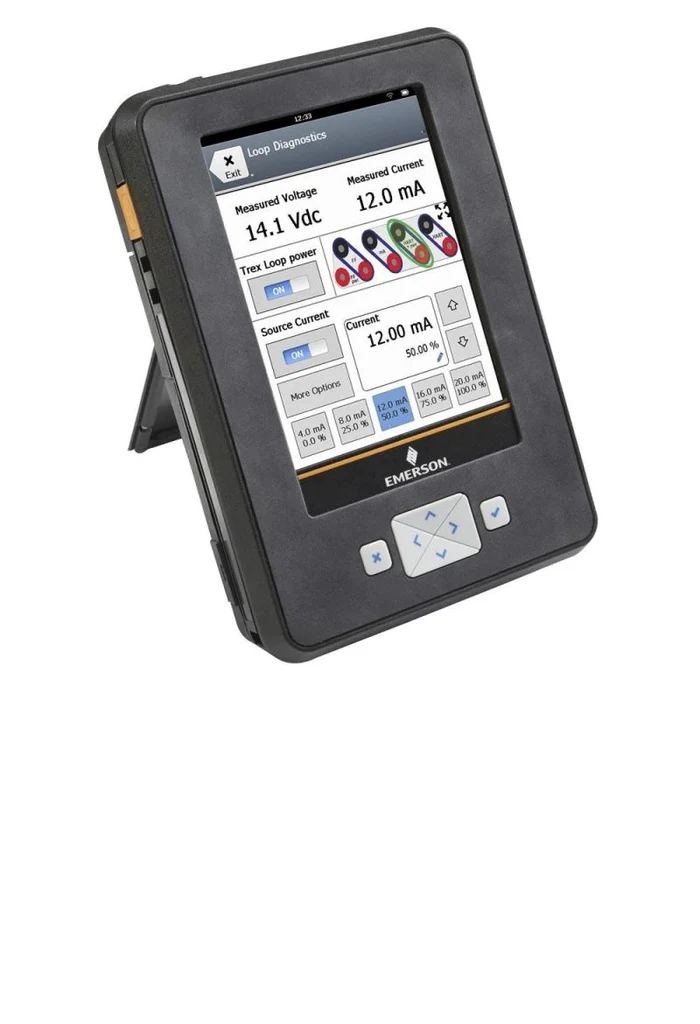

Emerson TREX AMS Trex Device Communicator - HART, Model- TREX-CHP-NAWS1

https://dotearth.erpfunnel.com/web/image/product.template/2116/image_1920?unique=96f217c

30,922.00 AED 30922.0 AED 30,922.00 AED 31,000.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Test & Measurement Emerson Device Communicator HART Communicator
Contact Us
Brand: Emerson
Warranty: 1 Year

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

​Key Features:

Full HART Protocol Support

  • Enables advanced configuration, calibration, and diagnostics of HART field devices

  • Compatible with all HART-compliant instruments

User-Friendly Touchscreen Interface

  • Large 5.7" high-resolution color touchscreen

  • Intuitive navigation for ease of use in the field or plant environments

Built-In 24V Loop Power Supply

  • Powers devices directly in the field without external power sources

  • Saves time during device commissioning and troubleshooting

Advanced Diagnostics Tools

  • Access to real-time device status, alerts, and historical data

  • Helps prevent unplanned downtime and improves asset reliability

Integrated with AMS Device Manager

  • Seamless synchronization with Emerson’s AMS Suite

  • Facilitates centralized management and documentation of field device configurations

Robust Connectivity Options

  • USB and optional Wi-Fi/Bluetooth for easy data transfer and remote updates

  • Supports firmware updates and device descriptions (DDs)

High-Capacity Storage

  • Large internal memory for storing device configurations, logs, and reports

  • Expandable via MicroSD for additional data backup

Rugged & Reliable Design

  • Designed for industrial environments (IP54 rated)

  • Withstands drops, vibrations, and harsh field conditions

Hazardous Area Certified

  • Compliant with safety certifications for use in hazardous zones (varies by region)

  • Ideal for oil & gas, chemical, and power industries

Fast Boot-Up & Performance

  • ARM-based processor with quick response times

  • Efficient multitasking and real-time communication with field instruments


​Key Technical Specifications:

Communication Protocol:

  • HART (Highway Addressable Remote Transducer)

Processor:

  • 800 MHz ARM Cortex A8 / NXP

Operating System:

  • Embedded Windows Embedded Compact 7 (WEC7)

Display:

  • 5.7 inch (14.5 cm) color VGA resistive touchscreen

  • Resolution: 640 x 480 pixels (sunlight-readable)

Memory:

  • 512 MB DDR3 SDRAM

  • 2 GB NAND and 32 GB extended flash

  • Expandable via MicroSD card slot

Battery:

  • Rechargeable Lithium-Ion battery pack

  • Input voltage 100-240 VAC, 50-60 Hz

  • Provides up to 10 hours of continuous use

Power Supply:

  • Includes internal 24V loop power for device commissioning and diagnostics

Connectivity:

  • 1 x USB host port

  • 1 x Micro USB client

  • Optional Wi-Fi and Bluetooth (not included in this model)

Audio:

  • Built-in speaker and microphone for voice notes (varies by configuration)

Software Compatibility:

  • AMS Trex Device Communicator software

  • AMS Device Manager integration

  • Supports device configuration, diagnostics, and firmware updates

Device Descriptions (DDs):

  • Supports HART DDs and continuous updates via AMS Trex software

Environmental Ratings:

  • IP54 rated – dust and water-resistant

  • Operating Temperature: -20°C to +55°C

  • Storage Temperature: -20°C to +60°C

Weight:

  • Approximately 2.9 lbs (1330 grams)
