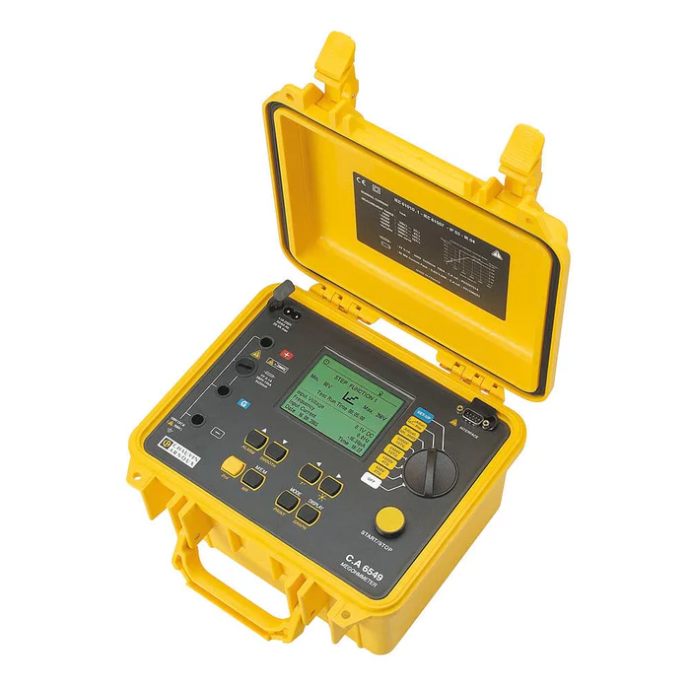

Chauvin Arnoux CA6549 Digital Insulation Tester, 5000V

This combination does not exist.

Test & Measurement Electrical Testing Chauvin Arnoux Insulation Tester

Brand: Chauvin Arnoux

Warranty: 1 Year

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Key Features:

High Voltage Insulation Testing (Up to 5kV): Provides insulation testing up to 5000V, suitable for high-voltage equipment and systems.
Wide Resistance Measurement Range: Measures insulation resistance across a broad range, allowing for diverse applications.
Multiple Test Voltages: Offers selectable test voltages, allowing users to tailor the test to the specific application.
Diagnostic Test Modes (DAR, PI, DD): Includes Dielectric Absorption Ratio (DAR), Polarization Index (PI), and Discharge Diagnostic (DD) tests for comprehensive insulation analysis.
Step Voltage Testing: Performs step voltage testing for more in-depth insulation analysis and identification of weaknesses.
Ramp Testing: Allows for a gradual increase in test voltage, providing valuable insights into insulation behaviour.
Automatic Discharge: Automatically discharges the tested object after the test, ensuring operator safety.
Large, Backlit Digital Display: Provides clear and easy-to-read measurements, even in challenging lighting conditions.
Data Storage and Transfer: Stores test results and allows for easy data transfer to a computer for analysis and reporting.
Rugged and Portable Design: Designed for field use with a ruggedized construction and convenient portability.
Safety Features: Incorporates multiple safety features to protect the operator during high-voltage testing.

Technical Specifications:

Test Voltage Levels: 500V, 1000V, 2500V, and 5000V

Insulation Resistance Measurement Range: 10kΩ to 10TΩ

Polarization Index (PI) & Dielectric Absorption Ratio (DAR): Automatic calculation for insulation quality assessment

Ramp Test Function: Provides gradual voltage increase for detecting weak insulation points

Auto Discharge Feature: Ensures operator safety by automatically discharging residual voltage

Large Backlit LCD Display: Provides clear readings in various lighting conditions

Data Logging & Storage: Saves multiple test results for later review

Safety Rating: IEC 61010-1 (Cat. III 1,000 V or Cat. I 2,500 V) and 61557

Power Supply: Rechargeable battery or external power source

Operating Temperature: -10°C to 50°C

Dimensions & Weight: 270 x 250 x 180 mm & 4.3 kg
