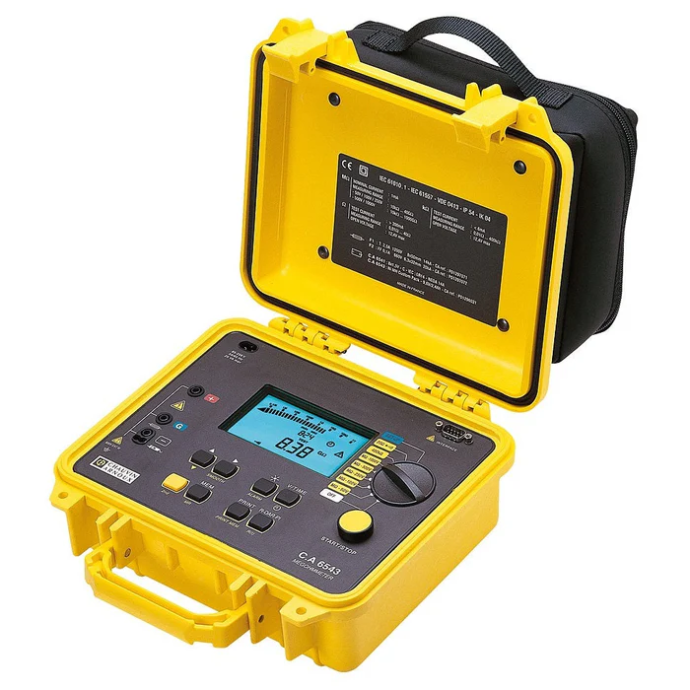

Chauvin Arnoux CA6543 1kV High Performance Insulation Tester

Chauvin Arnoux CA6543 1kV High Performance Insulation Tester

https://dotearth.erpfunnel.com/web/image/product.template/2069/image_1920?unique=96f217c

5,899.00 AED 5899.0 AED 5,899.00 AED 5,919.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Test & Measurement Best Seller Electrical Testing Chauvin Arnoux Electrical Safety Testers Insulation Tester
Contact Us
Brand: Chauvin Arnoux
Warranty: 1 Year

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Key Features:

Wide Insulation Resistance Range: Measures up to 400GΩ, ensuring comprehensive testing capabilities.
Adjustable Test Voltages: Selectable test voltages at 50V, 100V, 250V, 500V, and 1000V for diverse applications.
High Measurement Accuracy: Delivers True RMS voltage and current measurements for precise diagnostics.
Polarization Index (PI) & Dielectric Absorption Ratio (DAR): Automated calculations for advanced insulation analysis.
Programmable Timed Tests: Conducts customized tests with programmable duration for in-depth assessment.
Automatic Discharge Function: Ensures user safety by discharging residual voltage after testing.
Large Backlit LCD Display: Provides clear readouts of resistance, voltage, and test duration in all lighting conditions.
USB & Communication Interface: Enables data transfer for analysis and reporting using software.
Robust & Portable Design: Built for industrial environments, featuring a durable casing for field applications.
Power Supply Options: Operates on rechargeable battery or mains power for convenience.


​Key Technical Specifications:

  • Test Voltage Options: 50V, 100V, 250V, 500V, 1000V
  • Insulation Resistance Measurement Range: Up to 4TΩ
  • Accuracy: ±5% of reading
  • Test Current: 1mA at each test voltage
  • Short-Circuit Current: Up to 3mA
  • Measurement Modes: Timer Mode, DAR (Dielectric Absorption Ratio), and PI (Polarization Index)
  • Voltage Measurement: AC/DC voltage up to 1,200V
  • Resistance Measurement: 0.01Ω to 400kΩ
  • Display: Large backlit LCD for clear visibility
  • Data Storage: Internal memory for result logging
  • Power Supply: Rechargeable battery & mains operation
  • Safety Compliance: IEC 61010 600V CAT III and IEC 61557
  • Durability: Rugged, IP54-rated housing for industrial environments
  • Accessories: Includes test leads, carrying case, and charger
