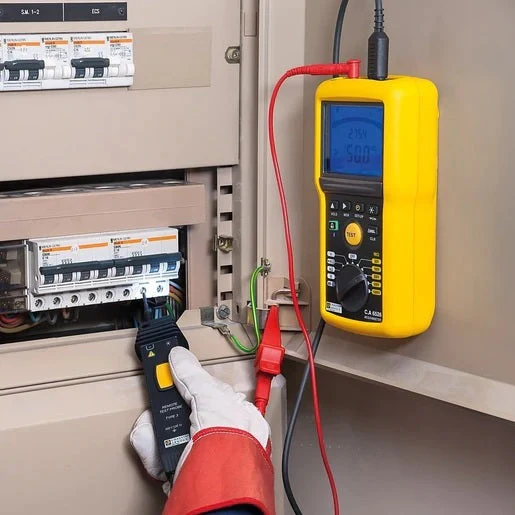

Chauvin Arnoux CA6522 1kV Insulation And Continuity Tester

This combination does not exist.

Test & Measurement Electrical Testing Chauvin Arnoux Insulation Tester

Brand: Chauvin Arnoux

Warranty: 1 Year

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Key Features:

1kV Insulation Testing: Offers insulation testing up to 1kV, suitable for a wide range of applications.
Wide Resistance Range: Measures insulation resistance up to 200GΩ, covering various testing needs.
Multiple Test Modes: Includes Manual, Lock, Timer, PI, and DAR test modes for comprehensive insulation analysis.
Continuity Testing: Features continuity testing with 200mA and 20mA test currents, including active fuseless protection.
Versatile Measurement Functions: Measures voltage up to 700V, frequency up to 800Hz, resistance up to 999kΩ, and capacitance up to 10µF.
User-Friendly Design: Compact, lightweight, and easy to use, with a comfortable grip and intuitive interface.
Enhanced Display: Wide backlit screen with double digital display and logarithmic bargraph for clear readings.
Data Storage: Stores up to 300 measurements for easy analysis and reporting.
Safety Features: Designed with 600V CAT IV safety and IP54/IK04 protection for safe operation in various environments.
Additional Features: Includes a magnetic stand, remote control with torch, and alarm thresholds for added convenience.

Key Technical Specifications

Model Number: Chauvin Arnoux CA6522
Voltage Rating: 1kV Insulation Testing
Test Voltages: 250V, 500V, and 1000V for flexibility in various applications
Display Type: Large, easy-to-read LCD display with backlighting for low-light environments
Data Hold Function: Captures and holds readings for easy reference
Resistance Measurement: Measures insulation resistance with precision, suitable for electrical installations, cables, and electrical equipment
Safety Features: Complies with IEC 61010-1 safety standards, designed for safe operation up to CAT IV 600V
Battery Life: Long-lasting rechargeable battery, providing reliable use for extended testing periods
Compact Design: Portable and rugged design ideal for on-site testing and fieldwork
Automatic Leakage Detection: Detects leakage current during insulation testing for comprehensive analysis
Voltage- Accuracy / Input impedance: ± (3 % + 2 cts) / 400 kΩ
Battery Type: Rechargeable NiMH batteries with a long operational life
Applications: Ideal for testing insulation in cables, power systems, industrial equipment, and transformers
Compliance: Meets international testing standards, including IEC 61557 for insulation testing
