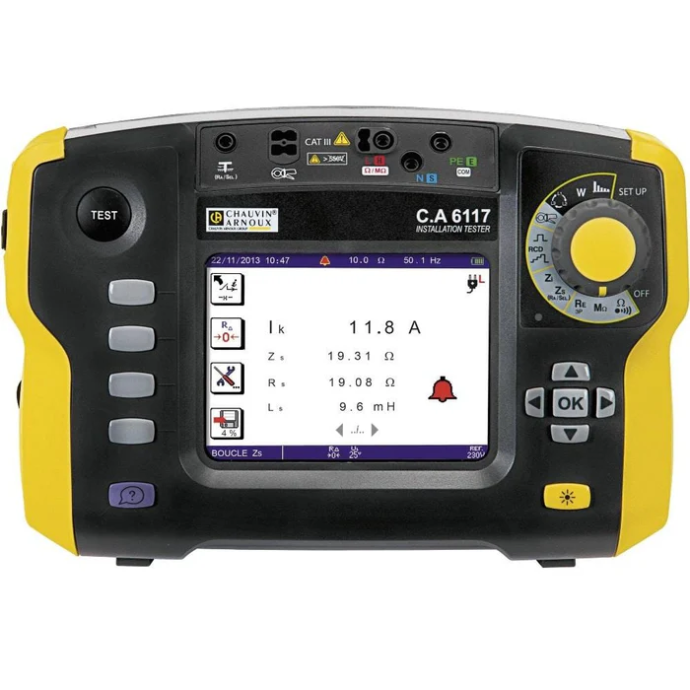

Chauvin Arnoux CA6117 Multifunction Installation Tester

Chauvin Arnoux CA6117 Multifunction Installation Tester

https://dotearth.erpfunnel.com/web/image/product.template/2088/image_1920?unique=96f217c

11,890.00 AED 11890.0 AED 11,890.00 AED 11,929.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Test & Measurement Electrical Testing Chauvin Arnoux Insulation Tester
Contact Us
Brand: Chauvin Arnoux
Warranty: 1 Year

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Key Features:

  • Comprehensive Electrical Testing: Measures earth resistance, loop impedance, insulation resistance, continuity, RCD tripping time & current, voltage, current, and frequency. Covers all essential electrical installation tests.
  • Versatile Applications: Ideal for testing electrical installations in residential, commercial, and industrial buildings. Suitable for TT, TN, and IT systems.
  • Advanced RCD Testing: Includes selective RCD testing, allowing for differentiation between various RCD types and preventing nuisance tripping. Tests Type A, AC, B, and F RCDs.
  • Accurate & Reliable Measurements: Provides highly accurate readings for reliable diagnostics and compliance with safety regulations. Meets IEC 61557 standards.
  • User-Friendly Interface: Large, backlit color display with intuitive navigation for easy operation, even in challenging environments. Minimizes training time.
  • Fast Testing Speeds: Optimized measurement algorithms for quick and efficient testing, saving time on site.
  • Data Logging & Transfer: Stores thousands of test results and easily transfers data to a PC via Bluetooth or USB for professional reporting and analysis using Data View software.
  • Bluetooth Connectivity: Wireless communication for seamless data transfer and remote control, enhancing workflow efficiency.
  • Rugged & Durable Design: Built to withstand harsh field conditions with a robust housing and IP54 ingress protection. Ensures long-lasting performance.
  • Optional Accessories: Compatible with a range of accessories, such as current clamps and probes, to expand testing capabilities.



​Technical Specifications:

Voltage Measurement: Up to 550V AC/DC
Insulation Resistance: Ranges from 10kΩ to 2GΩ with test voltages of 50V, 100V, 250V, 500V, and 1,000V
Continuity Test: 200mA and 2A with automatic polarity reversal
Loop Impedance Measurement: With and without RCD tripping
Earth Resistance Measurement: 2-pole, 3-pole, and selective methods
RCD Testing: Type AC, A, B, and F with multiple trip current settings
Phase Rotation: Automatic detection of 3-phase systems
Frequency Measurement: 15Hz to 500Hz
Touch Voltage Measurement: Ensures enhanced safety during testing
Memory & Data Storage: Large internal storage with USB connectivity for data transfer
Display: High-resolution backlit LCD for clear visibility in all lighting conditions
Safety Compliance: IEC 61010 -1 – 600 V CAT III – 300 V CAT IV – IEC 61557
Power Supply: Rechargeable NiMH battery or mains operation
Weight & Portability: Lightweight and compact design for easy field use
