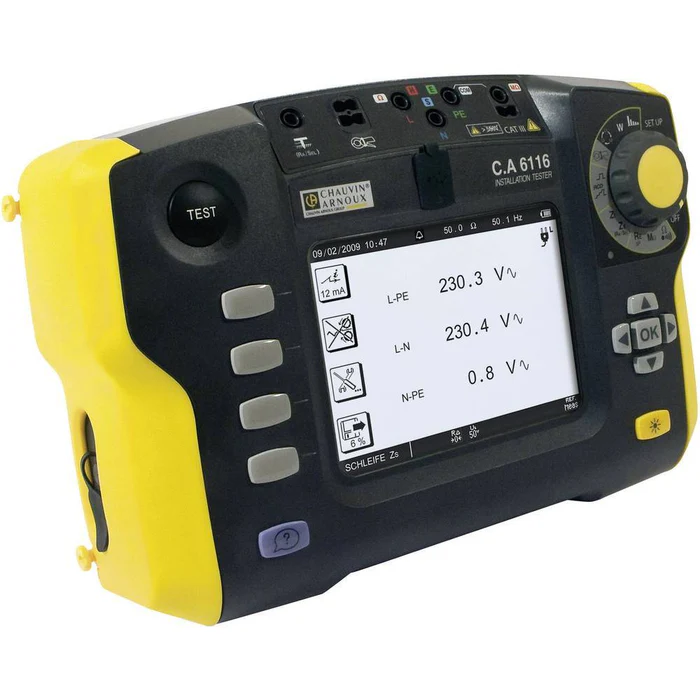

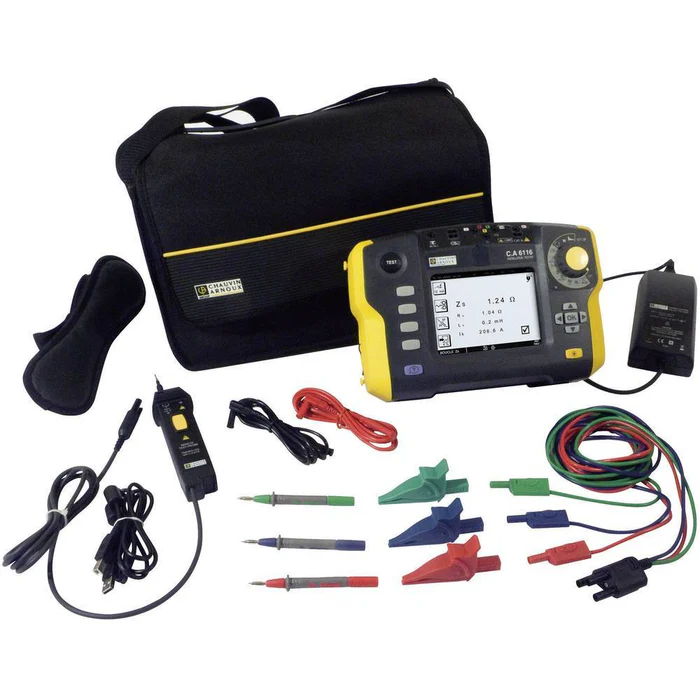

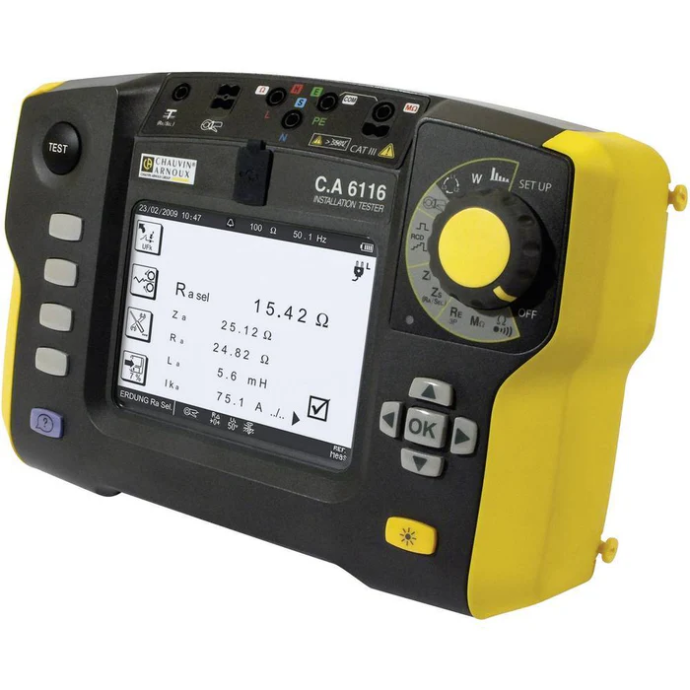

Chauvin Arnoux CA6116N Multifunction Installation Tester

https://dotearth.erpfunnel.com/web/image/product.template/2089/image_1920?unique=96f217c
(0 review)

8,480.00 AED 8480.0 AED 8,480.00 AED 8,499.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Chauvin Arnoux
    Warranty: 1 Year


    Share

    Name: Chauvin Arnoux CA6116N Multifunction Installation Tester

    ​Key Features:

    • Comprehensive Electrical Testing: Measures earth resistance, loop impedance, insulation resistance, continuity, RCD tripping time & current, voltage, current, and frequency. Covers all essential electrical installation tests in one device.
    • Versatile Applications: Ideal for testing electrical installations in residential, commercial, and industrial buildings. Suitable for TT, TN, and IT earthing systems.
    • Advanced RCD Testing: Tests various RCD types (Type AC, A, and B) including selective RCD testing to avoid nuisance tripping. Provides accurate RCD tripping time and current measurements.
    • High Accuracy & Reliability: Delivers precise and dependable measurements for accurate diagnostics and compliance with safety regulations. Meets IEC 61557 standards.
    • User-Friendly Operation: Large, backlit digital display with intuitive icons and simple navigation for easy use, even in poorly lit areas. Minimizes training requirements.
    • Fast & Efficient Testing: Measurement algorithms enable quick and efficient testing, saving valuable time on site.
    • Data Logging & Transfer: Stores test results internally and allows for easy data transfer to a PC via USB for professional report generation using Data View software.
    • Rugged & Durable Design: Built to withstand demanding field conditions with a robust, shockproof housing. Ensures long-lasting performance.
    • Affordable & Value-Packed: Offers a comprehensive range of testing capabilities at a competitive price point, providing excellent value for investment.


    ​Technical Specifications:

    Voltage Measurement: Up to 550V AC/DC
    Insulation Resistance Testing: 10kΩ to 2GΩ with test voltages of 50V, 100V, 250V, 500V, and 1,000V
    Continuity Test: 200mA and 2A with automatic polarity reversal for low-resistance circuits
    Loop & Line Impedance Measurement: With and without RCD tripping, ensuring circuit safety
    Earth Resistance Measurement: 2-pole, 3-pole, and selective methods for accurate grounding verification
    RCD Testing: Compatible with Type AC, A, B, and F RCDs, with multiple trip current settings
    Phase Rotation Detection: Ensures correct 3-phase system installation
    Frequency Measurement: 15Hz to 500Hz range
    Touch Voltage Measurement: Enhances safety by detecting dangerous voltage levels
    Data Storage & Transfer: Internal memory with USB connectivity for efficient data management
    Display: Large backlit LCD for easy readability in low-light conditions
    Safety Compliance: IEC 61010 -1 – 600 V CAT III – 300 V CAT IV – IEC 61557
    Power Supply: Operates on a rechargeable NiMH battery or mains power
    Portability: Lightweight and ergonomic design for convenient on-site testing
