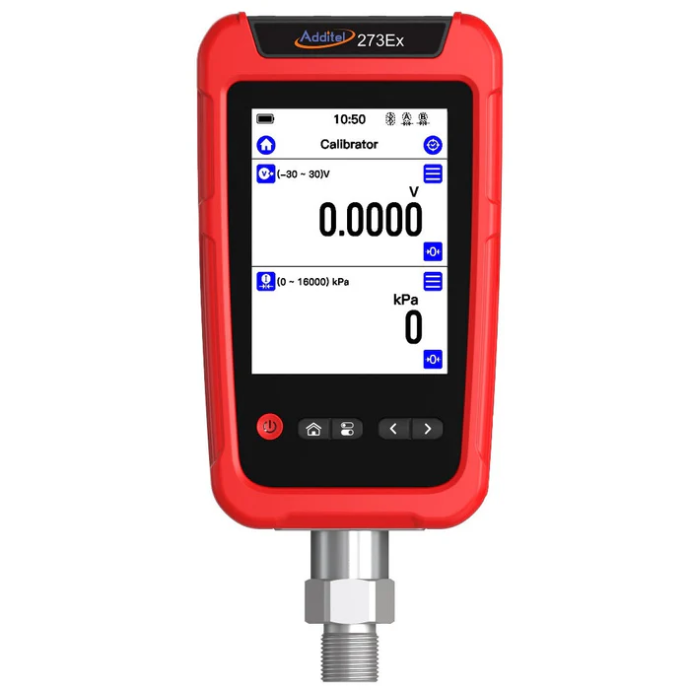

Additel 273Ex Handheld Pressure Calibrator

https://dotearth.erpfunnel.com/web/image/product.template/2135/image_1920?unique=96f217c
(0 review)

17,500.00 AED 17500.0 AED 17,500.00 AED 18,200.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Additel
    Warranty: 1 Year


    Share

    Name: Additel 273Ex Handheld Pressure Calibrator

    Key Features:

    All-in-One Intrinsically Safe Calibrator

    • Combines pressure measurement, loop calibration, and HART communication in a single compact device.

    Wide Pressure Measurement Range

    • Supports gauge, differential, and absolute pressure up to 60,000 psi (4,200 bar) depending on sensor module used.

    ATEX, IECEx, CSA Certified

    • Fully intrinsically safe for use in hazardous and explosive environments (Zone 0).

    Modular Pressure Sensor Design

    • Compatible with ADT160Ex series intelligent pressure modules, offering flexibility and easy swap-out.

    High Accuracy & Stability

    • Delivers up to 0.02% FS accuracy, suitable for high-precision field calibration and testing.

    HART Communicator Built-In

    • Functions as a universal HART communicator to configure, calibrate, and diagnose smart transmitters.

    Multifunction Process Calibrator

    • Measures and sources:

      • Voltage (mV/V)

      • Current (mA)

      • Resistance (RTD/thermocouple support)

      • Frequency

      • Switches

    Full Loop Calibration Capability

    • Simulates sensors and captures outputs to validate full process loops.

    Color Touchscreen Display

    • Easy-to-read 3.5-inch color touchscreen with intuitive navigation and real-time data display.

    Advanced Data Logging

    • Stores calibration tasks, logs, and test data for later retrieval and report generation.

    Robust Field-Ready Design

    • Rugged, IP67-rated housing for harsh industrial environments.

    Rechargeable Li-ion Battery

    • Up to 35 hours of continuous use on a single charge.

    USB and Bluetooth Communication

    • Allows seamless data transfer, remote control, and integration with Additel software.


    ​Key Technical Specifications:

    Model: Additel 273Ex

    🔹 Explosion Protection Certifications:

    • ATEX, IECEx, CSA certified for Zone 0 hazardous environments

    • Intrinsically safe design: Ex ia IIC T4 Ga

    🔹 Pressure Measurement:

    • Compatible with ADT160Ex smart pressure modules

    • Range: Vacuum to 60,000 psi (4,200 bar)

    • Accuracy: Up to ±0.02% FS (sensor dependent)

    🔹 Display:

    • 4.4-inch color display capacitive screen, transflective, with LED backlight

    • Multi-window display for simultaneous readings

    🔹 Electrical Measurement & Source Capabilities:

    • Current (mA): 0 to 24 mA, sourcing & measuring

    • Port Protection Voltage:  30 V max

    • Frequency:  Units: Hz, kHz, MHz, CPM, CPH, s, ms, us

    • Switch On-Off Measurement:  Inspection voltage: (3 ~ 30)V Response speed: < 10 ms, supports wet and dry switch

    • Loop Power Supply: 22 V ± 10%, max output impedance: 320 Ω, max load current: 25 mA

    🔹 HART Communication:

    • Built-in universal HART communicator

    • Supports all HART commands for transmitter configuration

    🔹 Data Logging & Storage:

    • Internal memory for task management and data logging

    • Stores calibration results and field test data

    🔹 Battery:

    • Rechargeable Li-ion battery, up to 6 hours operation

    • Charging via USB-C

    🔹 Connectivity:

    • USB, Bluetooth (for wireless data transfer and remote operation)

    🔹 Environmental:

    • Operating Temperature: (-20 ~ 50)°C

    • Storage Temperature:  (-30 ~ 70)°C

    • Humidity: 0% to 95% RH, non-condensing

    • Altitude: 3000 meters

    🔹 Ingress Protection:

    • Rated IP67 for dust and water resistance

    🔹 Dimensions & Weight:

    • Size: 6.97" x 4.13" x 2.04" (177 x 105 x 52 mm) which doesn't include bottom ADT158Ex

    • Weight: 1.65 lbs (0.75 kg)
