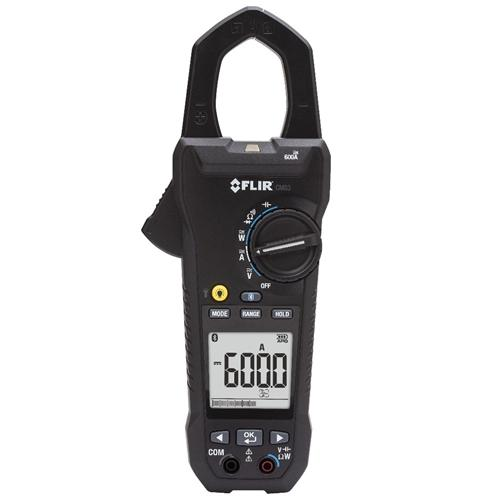

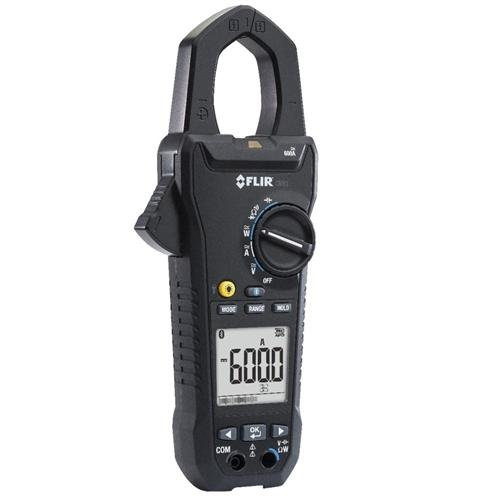

FLIR CM83: True RMS Power Clamp Meter (wireless)

https://dotearth.erpfunnel.com/web/image/product.template/2012/image_1920?unique=96f217c
(0 review)

1,469.00 AED 1469.0 AED 1,469.00 AED 1,499.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Flir
    Warranty: 1 Year


    Share

    Name: FLIR CM83: True RMS Power Clamp Meter (wireless)

    ​Key Features:

    • True RMS Power Measurement:
      • Accurately measures AC/DC current, voltage, and power, including distorted waveforms, for precise readings.
    • Wireless Connectivity:
      • Enables wireless data transfer to smartphones or tablets via Bluetooth for easy data logging, analysis, and sharing.
    • Integrated Logger:
      • Records measurement data for later analysis and documentation.
    • High Current Capacity:
      • Handles high current measurements, making it suitable for industrial and commercial applications.
    • Backlit Display:
      • Easy to read in dimly lit environments.
    • Data Hold Function:
      • Freezes readings for easy recording and analysis.
    • Auto Ranging:
      • Automatically selects the appropriate measurement range for optimal accuracy.
    • Compact and Durable Design:
      • Built to withstand tough jobsite conditions.
    • Ergonomic Design:
      • Comfortable to use for extended periods.


    ​Key Technical Specifications:

    Current Measurement Range

    • AC Current: 0.1A to 600A True RMS.
    • DC Current: 0.1A to 600A.
    • Accurate for diverse current measurement applications.

    Voltage Measurement Range

    • AC Voltage: 0.1V to 1000V True RMS.
    • DC Voltage: 0.1V to 1000V.
    • Ideal for detailed electrical diagnostics.

    Power Measurement

    • Active Power (W): 10W to 600kW.
    • Reactive Power (VAR): 10VAR to 600kVAR.
    • Apparent Power (VA): 10VA to 600kVA.
    • Comprehensive analysis of power systems.

    Harmonics Analysis

    • Measures Total Harmonic Distortion (THD).
    • Provides detailed insights into waveform distortions.

    Frequency Measurement

    • Range: 20Hz to 9.999kHz.
    • Accurate monitoring of system frequency.

    Resistance and Continuity Testing

    • Resistance Range: Up to 60kΩ.
    • Ensures precise troubleshooting.

    Capacitance Measurement

    • Range: Up to 3.999mF.
    • Useful for component and circuit analysis.

    Wireless Connectivity

    • Equipped with Bluetooth METERLiNK® for real-time data transfer to FLIR thermal imaging cameras and mobile devices.

    True RMS Technology

    • Ensures accurate readings for both sinusoidal and non-sinusoidal waveforms.

    Jaw Opening Capacity

    • Maximum Diameter: 37mm
    • Compatible with thick conductors and bus bars.

    Safety Ratings

    • CAT IV 600V, CAT III 1000V: Maximum safety for high-voltage environments.

    Display

    • Large, backlit dual display for clear visibility in all lighting conditions.
    • Bar graph display for real-time trend analysis.

    Inrush Current Measurement

    • Detects startup currents for motors and equipment.

    Data Logging and Memory

    • Stores measurement data for on-site analysis.
    • Exportable data for enhanced reporting.

    Durable and Rugged Design

    • Built for demanding environments with impact-resistant housing.
